while unpacking my paints and preparing the first miniatures to be painted after moving continents (and back to Chile), I was all of a sudden like possessed of an idea I already had in the past but never realised: building a paint shelf/rack for my paints!
As you say in German: "Gesagt, getan!" (Said, done), I grabbed a piece of paper and a blunt pencil and started drawing. I imagined a high and narrow rack for the wall-side of my table with enough space to encompass all my paints and enough space for future paints. I have mostly GW paints, so my design is heavily centered on fitting the corresponding paint cans. As material, I envisioned 3-5mm strong ply wood (or wallboard?), which I wanted to fix by combining wood glue and nails. I did some quick calculations about the required size for the rack and the corresponding amount of material and rushed to the nearest tool/home center in Santiago...
Two stores and two hours later, I came back with this:
I could not find any suitable ply wood but instead this weird paper/wood mixture material (MDF, I think?) in pre-cut plates with a maximum dimension of 35cm x 40cm. The thickness is 3mm. Instead of nails, I decided to buy a staple gun.
Since my rack was supposed to be 70cm wide and high, I first had to glue pairs of plates together and stapled them at the same time.
I left the glue to dry over night. The next day, I started putting the base and side walls together again with gluing and stapling at the same time...
BTW, for cutting the material I used a carpet knife and a metal ruler, which was not optimal but OK. The worst part was cutting all the individual narrow boards for holding the paints.
During this cutting process, I realise two things that would become quite annoying later: firstly, my metal ruler was not straight! And second, the pre-cut MDF plates were not all exactly the same size but some where a few millimeters narrower! Both combined led to my paint rack in general being not very straight in the end...
Anyway, next I glued the back wall to the side and bottom, and then marked the planned positions of the boards.
I also marked the board positions on all sides of the upper side walls
Then I glued the first board...

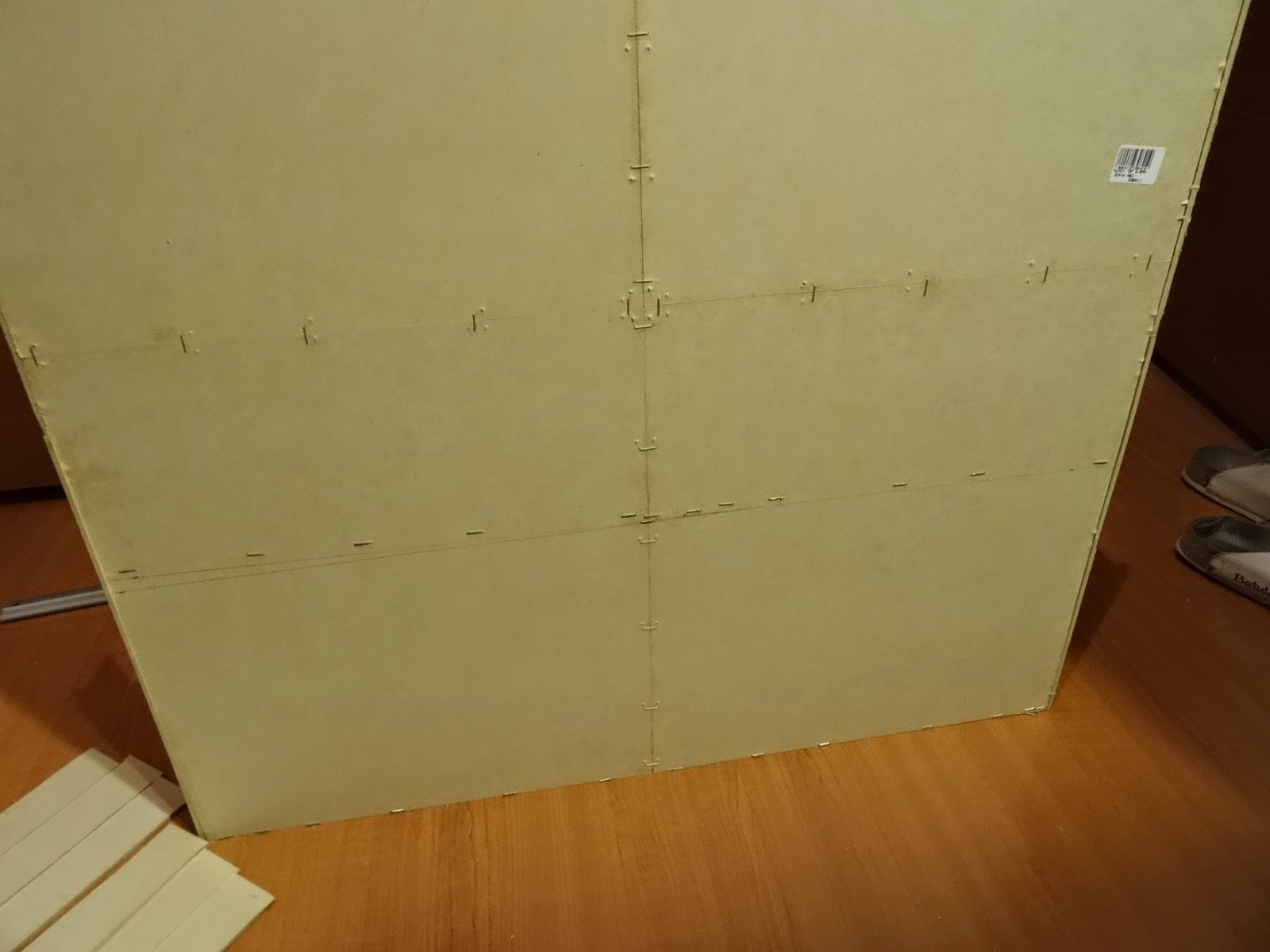

I tried to also mark the board position on the backside of the rack in order to put the staples in the right positions...
Which however, because of my non-straight ruler did not work very well. Therefore, I just drilled small holes into the back wall at the planned positions of the boards
And then started gluing and stapling...
The next day, I decided that for each board I wanted to have a small border that would prevent paints from easily falling of the shelf. This meant a lot of more cutting...
And gluing...
But then it was done, and since it is a paint rack, it needs to be painted! "Gesagt, getan!" ;-)
I know I got a bit carried away with the painting... ;-)
Here it is in its final position:
And filled with my paints:
Well, despite it being not completely straight and cleanly done, it is exactly as I imagined and I am super happy with it!
I hope you found this little article inspiring to build your own custom paint rack/shelf! It is totally worth it! ;-)
I leave you with the sunrise over Santiago as seen from my apartment....
Happy painting!
